Container Top Solar CTS

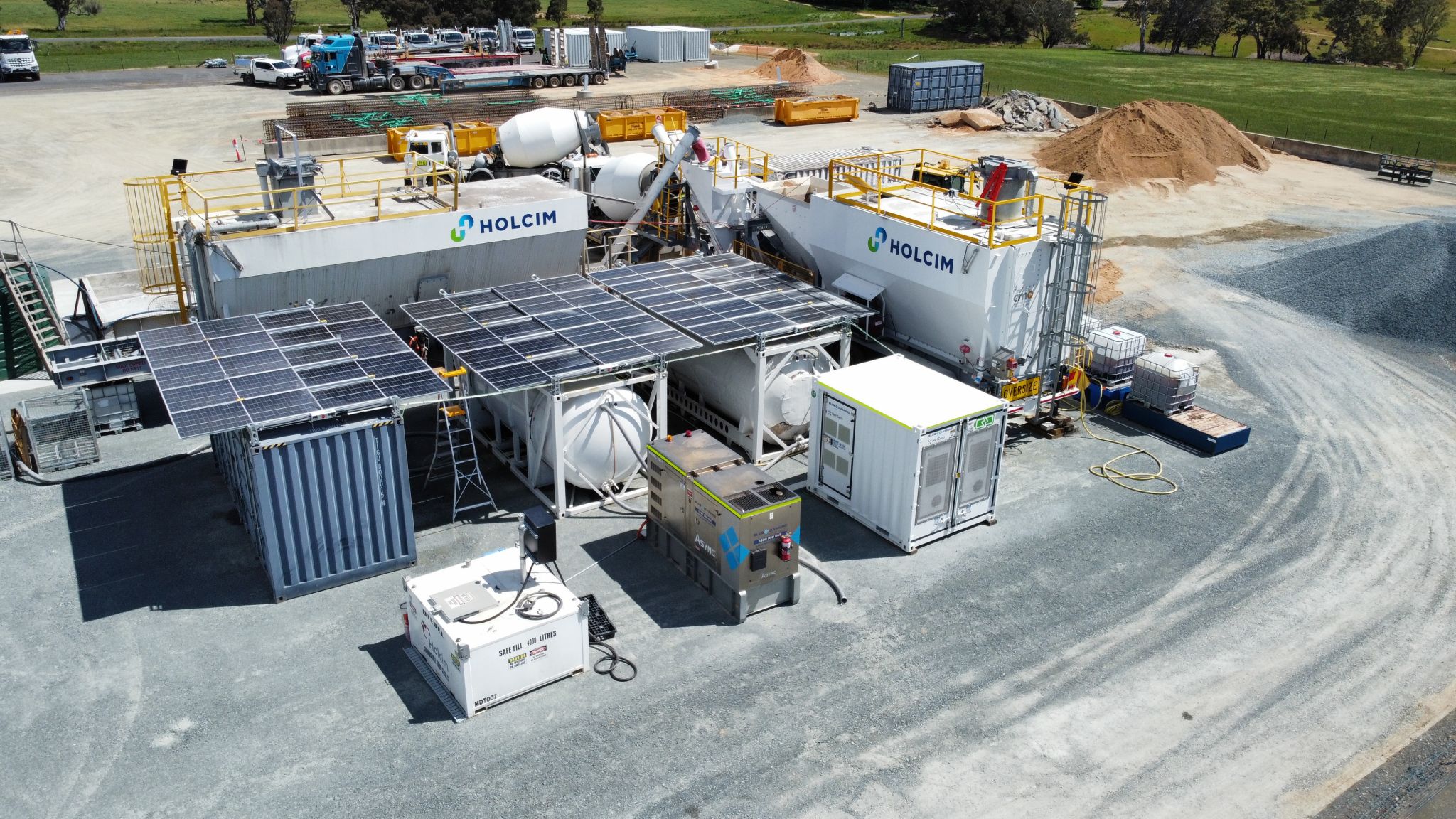

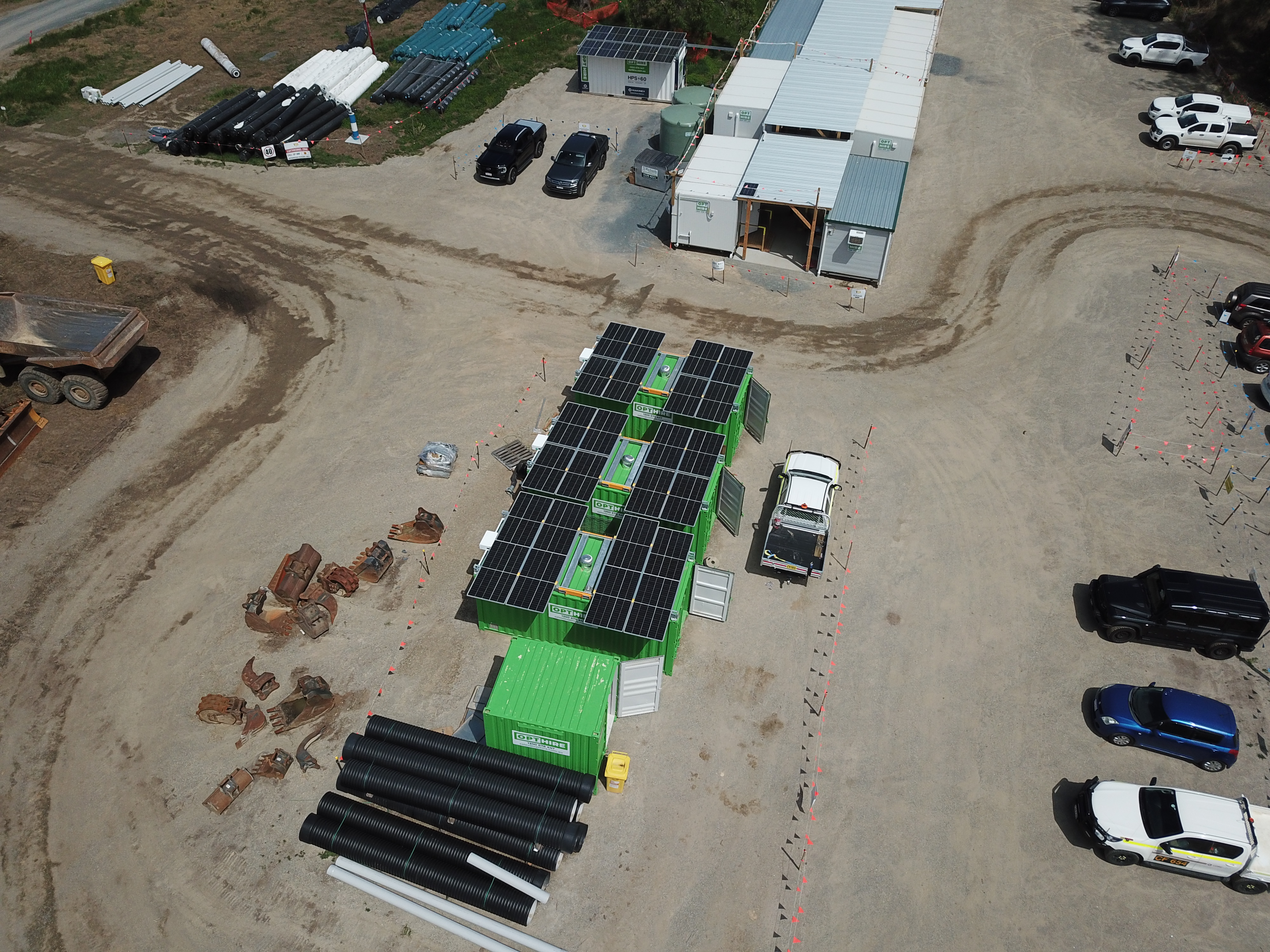

Maximise unused container roof space with the Makinex Container Top Solar system. Designed for rapid deployment, it provides a fast, efficient way to generate up to 5kW of clean solar energy on site. It integrates seamlessly with Makinex HPS and BESS, as well as third party energy storage solutions to deliver additional solar input, improve efficiency and reduce reliance on fuel-based power. Made in Australia and built to withstand tough Australian conditions.

Mounting Options

Field Solar – ground-mounted for flexible site placement.
Shelter Solar – elevated mounting supported by concrete blocks to maximise usable space underneath.

Brochure

Exploded Parts Diagram

Manual

Enquire Now

Know the Product

Container Top Solar CTS

Features and Benefits

Specifications

Documents

Other Related Products

Hybrid Power System HPS15 (Single Skid)

Hybrid Power System HPS20 (Single Skid)

Hybrid Power System HPS45 (Double Skid)

Hybrid Power System HPS100

AC or DC Coupled Configuration	Integrates seamlessly with new or existing power systems, providing maximum flexibility for a wide range of applications.
Container Roof Mounted Design	Utilises existing container roof space, preserving valuable ground area for site operations and equipment.
20ft & 40ft Container Options	Available to suit the most common shipping container sizes for greater installation flexibility.
Fast Deployment	Rapid installation minimises setup time, allowing renewable power to be established quickly on site.
ISO Corner Lock Mounting System	Securely attaches to shipping containers without permanent modifications, ensuring a safe and reliable installation.
Forklift Pockets	Enables safe, efficient handling and positioning during transport and installation.
Compatible with Third-Party Battery Energy Storage Systems	Integrates with Makinex and many other BESS brands, giving customers greater flexibility and protecting existing investments.
High-Efficiency Solar Generation	Captures renewable energy to reduce fuel consumption, operating costs and carbon emissions.
Modular & Portable Design	Easily relocated between projects, maximising equipment utilisation and return on investment.
Australian Designed & Manufactured	Built to withstand harsh Australian conditions with local engineering support and service.

Model	CTS5-DC	CTS5-AC
Mounting Type	Container Corner Anchor Bracket, Shelter Mount and Ground Mount.
Max Solar PV Power	5 kWp	5 kWp
Number of Strings	2 x 2.5 kW	2 x 2.5 kW
Rated Voltage Output	259 VDC per String	1P 230 VAC 50 Hz
Rated AC Output Power	NA	5 kW / 5 kVA
Rated AC Output Current	NA	20A
Dimensions - Packed (LxWxH)	6060x2410x360	6061x2410x360
Dimensions - Deployed (LxWxH)	6060x4370x360	6061x4370x360
