Site Shed Solar - SPV3 and SPV5
The SPV3 (2.6kWp) and SPV5 (5 kWp) are complete solar array kits designed for simple deployment and cost effective roof top power generation from modular buildings. Featuring flexible, lightweight panels, each kit includes a string inverter and electrical components for connection on-site or on the production floor.
Know the Product
Site Shed Solar - SPV3 and SPV5

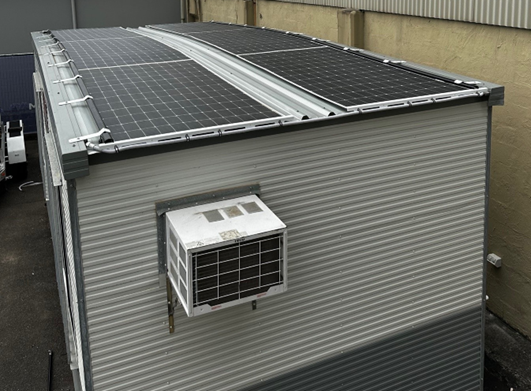

The Makinex Site Shed Solar system provides a simple and cost-effective way to generate clean, renewable energy from modular buildings and site sheds. Available in SPV3 (2.6kWp) and SPV5 (5kWp) configurations, the system delivers reliable solar generation that helps reduce fuel consumption, lower operating costs and improve site sustainability.
Designed and manufactured in Australia, the Site Shed Solar system is purpose-built for rapid deployment and seamless integration with temporary site infrastructure. Each unit arrives pre-mounted and transport-ready, featuring plug-and-play connectivity for quick installation on new or existing site sheds without complex configuration. Ideal for construction sites, mining operations and other remote environments, the system can operate independently or integrate with battery energy storage solutions such as the Makinex BESS10 to support more efficient and sustainable power generation.
Features and Benefits
Challenges on the Job
- Retrofit to existing or new 6x3 site sheds
- Seamless installation with no externally mounted conduits
- 6kWp Solar Array fixed to roof, engineered for safe highway transport
- 6kW High Frequency Inverter
- 32A Single-phase Male Plug for connecting in any power supply scenario
- Zero config plug-and-play deployment
- Compatible with BESS10
Specifications
| Model | SPV3 | SPV5 |
| Mounting Type | Site shed roof installation kit | |
| Max Solar PV Power | 2.6 kWp | 5 kWp |
| Number of Strings | 1 x 2.6 kW | 2 x 2.6 kW |
| Rated Voltage Output | 1P 230 VAC 50 Hz | 1P 230 VAC 50 Hz |
| Rated AC Output Power | 2.6 kW / 2.6 kVA | 5 kW / 5 kVA |
| Rated AC Output Current | 11.3A | 20A |
| Dimensions - Deployed (LxWxH) | 6162 x 2168 | 12324 x 2168 |
| Solar Array Weight | 68kg | 120kg |
| Inverter Weight | 7.7kg | 7.7kg |
| Package Weight | 80.5kg | 133kg |
