Hybrid Power System HPS45 (Double Skid)

The HPS is designed to capture, store and produce clean, sustainable energy for off grid applications. Ideal for mining, construction and agriculture applications, it provides reliable performance in demanding conditions.
The HPS45 is a double-skid hybrid power system delivering 45kW / 50kVA of reliable power. It combines 8kW of peak solar production with 60kWh of battery energy storage and an integrated diesel generator on a 500L fuel tank to provide clean, efficient power on demand, reducing fuel use while ensuring continuous operation day and night. Made in Australia and built for tough Australian conditions.

Brochure

Exploded Parts Diagram

Manual

Enquire Now

Know the Product

Hybrid Power System HPS45 (Double Skid)

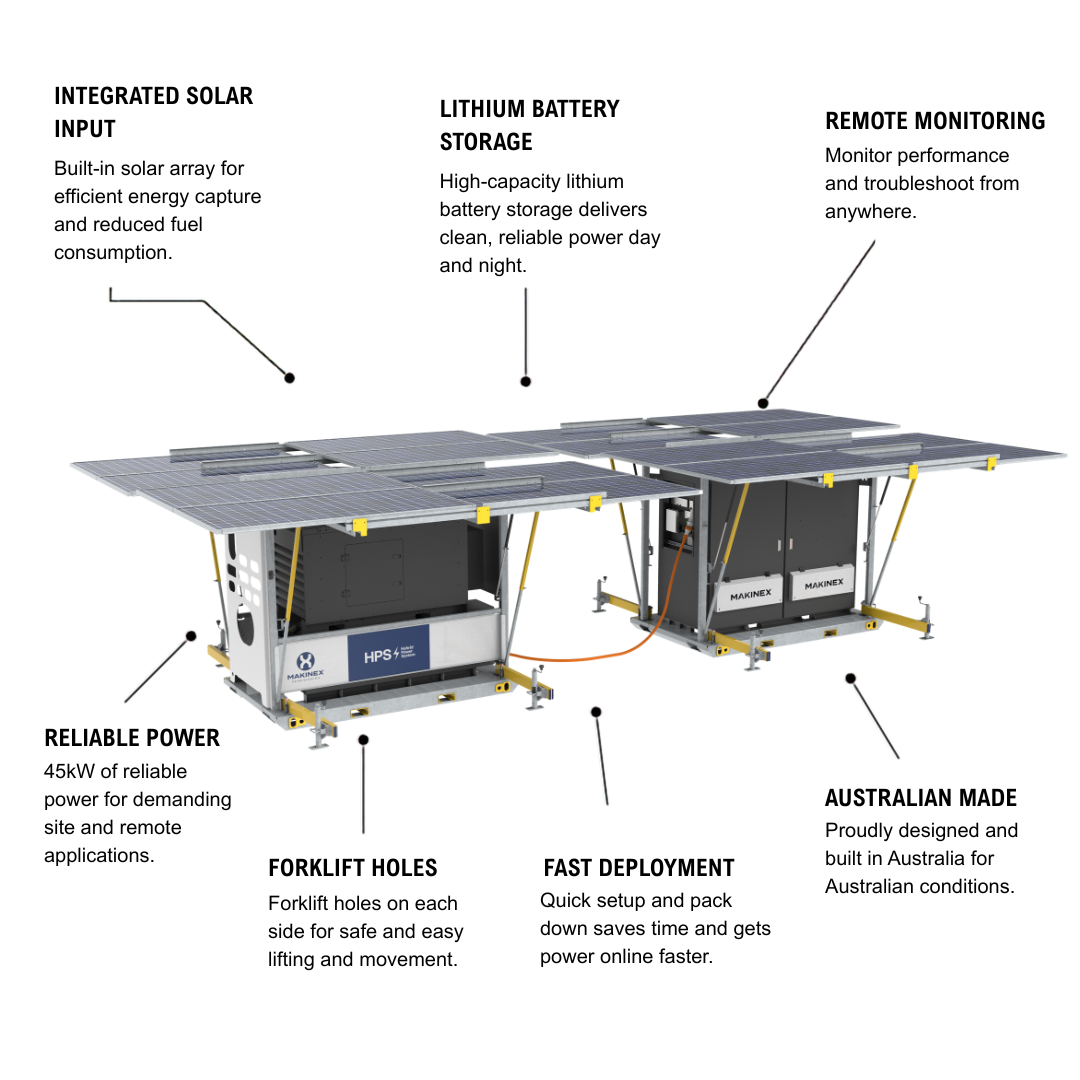

Features and Benefits

Solution Benefits

Integrated Lithium Battery Storage	Reduces generator run time, lowering fuel consumption, maintenance costs and emissions.
Intelligent Hybrid Power Management	Automatically manages battery, generator and solar power to maximise efficiency and minimise operating costs.
Integrated Solar Input	Harnesses renewable energy during daylight hours to reduce fuel use and extend battery operation.
Remote Monitoring & Control	Enables remote access to system performance, battery status and diagnostics for improved fleet management.
Automatic Generator Start/Stop	Runs the generator only when required, extending engine life while reducing noise and fuel consumption.
Reliable 45kW / 50kVA Prime Power Output	Delivers dependable power for larger site offices, plant, tools and critical infrastructure.
Australian Designed & Manufactured	Engineered to withstand harsh Australian conditions with local support and readily available parts.
Double Skid Design	Separates the power module and fuel tank for improved transportability, site flexibility and maintenance access.
Forklift Pockets & Lifting Points	Allows safe, efficient loading, unloading and relocation around site.
Fast Plug-and-Play Deployment	Minimises installation time, allowing power to be established quickly with minimal setup.
Heavy-Duty Weatherproof Enclosure	Protects critical components from harsh environmental conditions for reliable outdoor operation.
Low Noise Operation	Battery operation significantly reduces generator noise, creating a quieter and more productive worksite.
Reduced Carbon Emissions	Lowers fuel consumption to help reduce environmental impact and support sustainability goals.
Large Fuel Capacity	Supports extended run times between refuelling, reducing downtime on remote or long-duration projects.
High-Quality Industrial Components	Provides long-term durability and dependable performance in demanding environments.
Integrated Safety Systems	Built-in protection systems enhance operator safety and equipment reliability.

Specifications

Documents

Other Related Products

Hybrid Power System HPS15 (Single Skid)

Hybrid Power System HPS20 (Single Skid)

Hybrid Power System HPS100

Battery Energy Storage System BESS10

Model		HPS45
Configuration		Double Skid
Rated Power Output		45kW / 50 kVa
Rated Voltage		3 Phase 230/400 VAC 50 Hz
Battery		60 kWh (DoD 70%)
Dimensions (L x W x H)	Deployed	4376 x 5129x 2216 mm
	Stowed	2366 x 1530 x 2544 mm
Gross Mass	Dry	1989Kg (Skid 1), 2420kg (Skid 2)
	Wet	1989Kg (Skid 1), 2800Kg (Skid 2)
Generator Fuel Tank		60 kVA (48 kW) Prime 500L
Integrated Solar		8 kWp
Additional Input Capacity	AC Inverter Coupled	21kWp
	AC Load Coupled	50kWp
