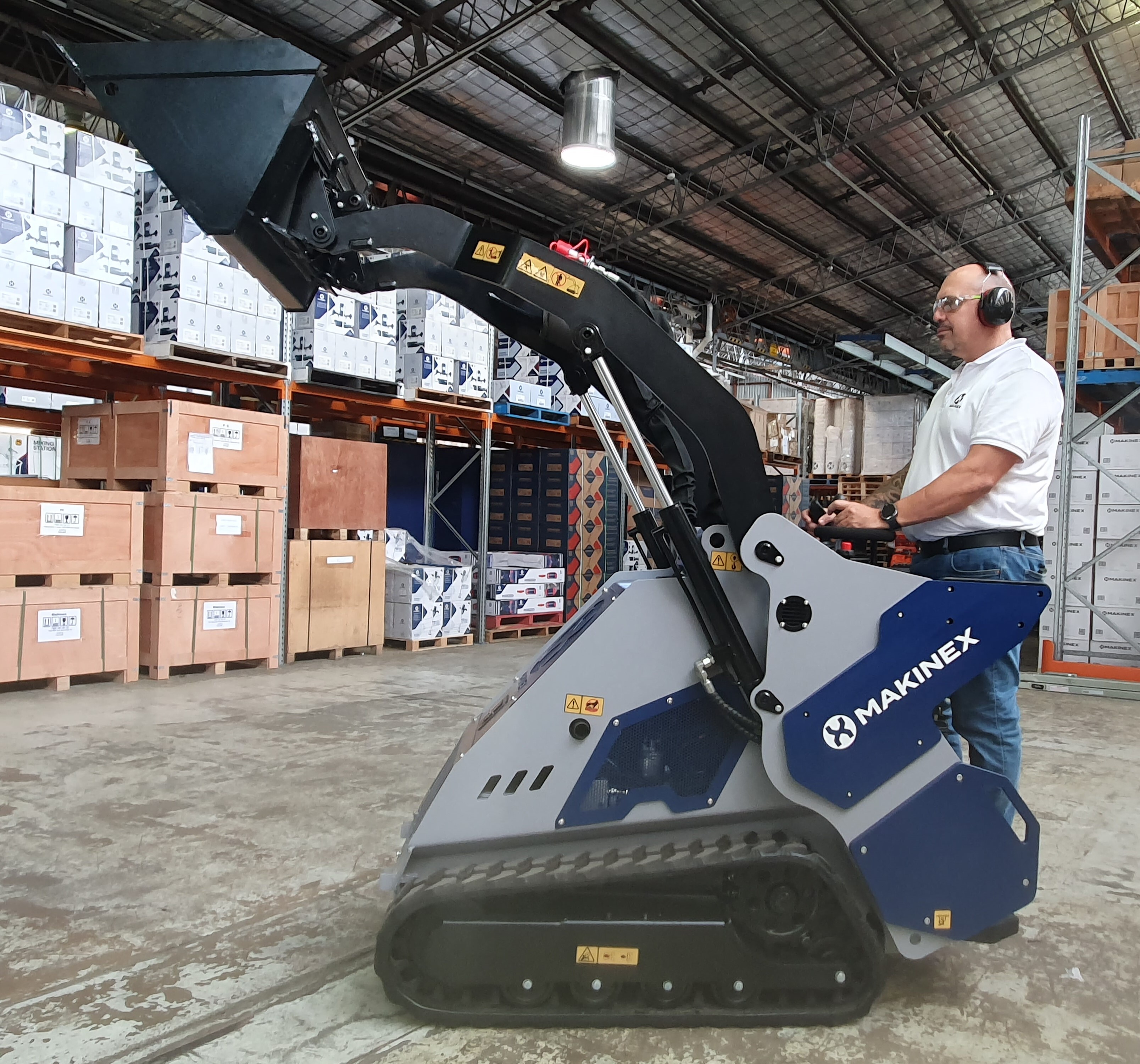

25hp Mini Stand-On Skid Steer

DIMENSIONS (STD)

Height to Bucket Hinge Pin, max

1.93 m

Operating Height, max std.bucket

2.7 m

Height

1.3 m

Length without Attachment

1.8 m

Length with Standard Bucket

2.5 m

Ground Clearance

145 mm

Ground Contact Length

960 mm

Width

890 mm

POWER

Engine Kubota D1105 diesel

EU Stage V/ EPA Tier 4 Final

Number of cylinders

3

Displacement

1.123 L

Bore

78 mm

Stroke

78.4 mm

Gross power rating (per SAE J1955)

18.2 kW

Rated engine speed

3000 rpm

PERFORMANCE

Ground drive speed, forward and reverse

6.3 km/h

Ground pressure, 8 in (200 mm) tracks

0.35 bar

Angle of Departure

22°

Tipping capacity

1010 kg

Operating capacity (35% of tipping capacity)

354 kg

Machine weight (no attachment, fluids full)

1230 kg

Auxiliary Hydraulic Flow

48 L/min

Auxiliary Hydraulic Pressure

180 Bar

Battery 12 V; 60 Ah

475 cold cranking amps @ -18°C

FLUID CAPACITIES

Fuel tank

34 L

Engine oil, with filter

5 L

Hydraulic System

45 L
