Hybrid Power System HPS20 (Single Skid)

The HPS is designed to capture, store and produce clean, sustainable energy for off grid applications. Ideal for mining, construction and agriculture applications, it provides reliable performance in demanding conditions.
The HPS20 is a single-skid hybrid power system delivering 20kW / 25kVA of reliable power. It combines 4kW of peak solar production with 30kWh of battery energy storage and an integrated diesel generator on a 400L fuel tank to provide clean, efficient power on demand, reducing fuel use while ensuring continuous operation day and night. Made in Australia and built for tough Australian conditions.

Brochure

Exploded Parts Diagram

Manual

Enquire Now

Know the Product

Hybrid Power System HPS20 (Single Skid)

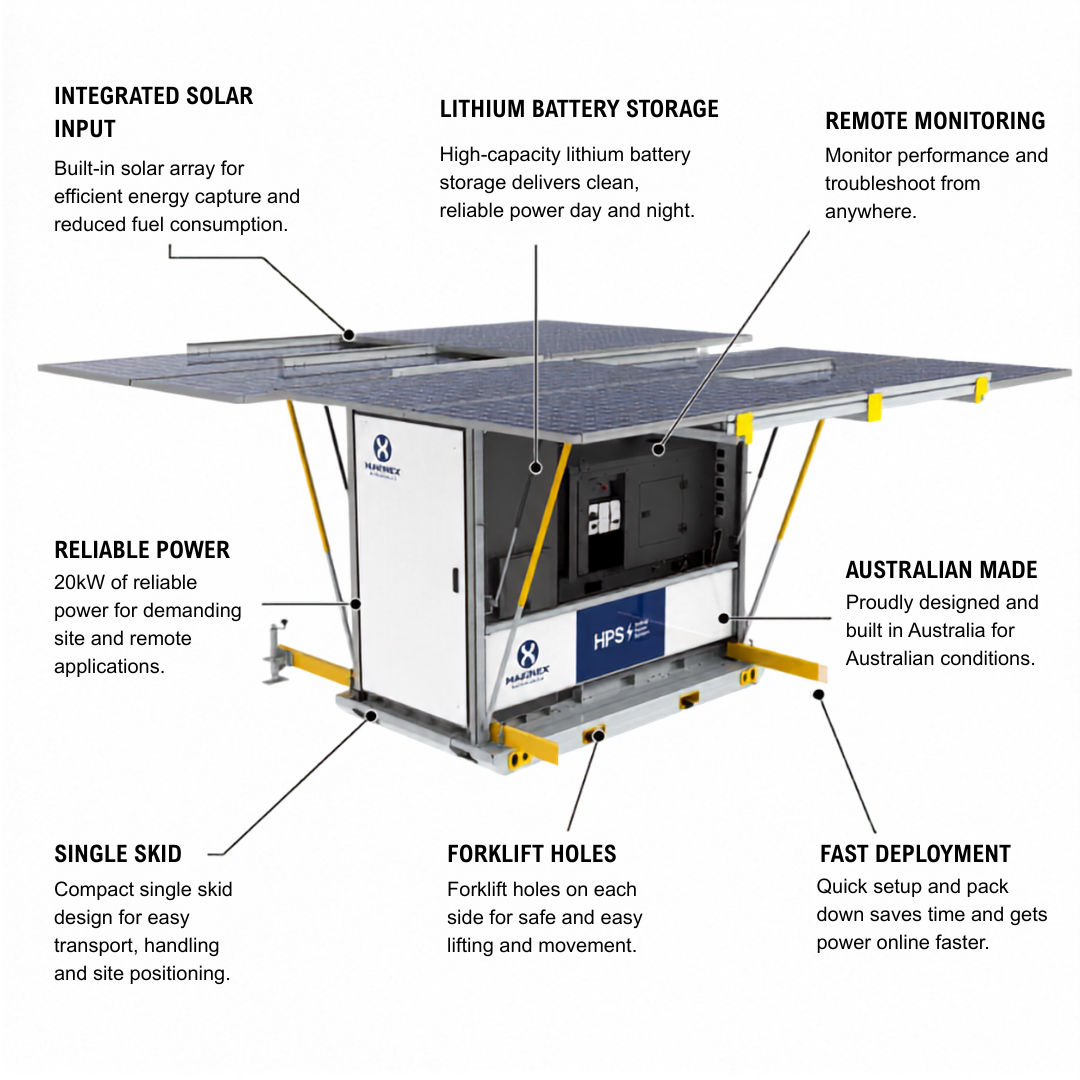

Features and Benefits

Solution Benefits

Integrated Lithium Battery Storage	Reduces generator run time, lowering fuel consumption, maintenance costs and emissions.
Intelligent Hybrid Power Management	Automatically switches between battery, generator and solar to maximise efficiency and minimise operating costs.
Integrated Solar Input	Captures renewable energy during daylight hours to further reduce fuel use and extend battery operation.
Remote Monitoring & Control	Monitor performance, battery status and system health remotely for improved fleet management and reduced site visits.
Automatic Generator Start/Stop	Runs the generator only when required, extending engine life while reducing noise and fuel usage.
Reliable Prime Power Output	Provides stable, continuous power for site offices, tools, lighting and critical equipment.
Australian Designed & Manufactured	Built for demanding Australian conditions with local engineering support and readily available parts.
Single Skid Design	Compact footprint allows quick deployment and easy positioning on site.
Forklift Pockets & Lifting Points	Makes transportation and relocation fast, safe and efficient.
Fast Plug-and-Play Deployment	Reduces installation time so power can be established quickly with minimal setup.
Heavy-Duty Weatherproof Enclosure	Protects critical components from harsh environmental conditions for reliable outdoor operation.
Low Noise Operation	Battery operation significantly reduces generator noise, improving site amenity and meeting noise-sensitive requirements.
Reduced Carbon Emissions	Lower fuel consumption helps organisations reduce their environmental impact and support sustainability goals.
Scalable Product Range	Multiple system sizes allow customers to select the right solution for projects of varying power demands.
High-Quality Industrial Components	Delivers long-term reliability and dependable performance in demanding applications.
Integrated Safety Systems	Built-in electrical protection helps improve operator safety and equipment reliability.

Specifications

Documents

Other Related Products

Hybrid Power System HPS15 (Single Skid)

Hybrid Power System HPS45 (Double Skid)

Hybrid Power System HPS100

Battery Energy Storage System BESS10

Model		HPS20
Configuration		Single Skid
Rated Power Output		20kW / 25 kVa
Rated Voltage		3 Phase 230/400 VAC 50 Hz
Battery		30 kWh (DoD 70%)
Dimensions (L x W x H)	Deployed	4376 x 5129x 2216 mm
	Stowed	2366 x 1530 x 2544 mm
Gross Mass	Dry	2470kg
	Wet	2700kg
Generator Fuel Tank		30 kVA (24 kW) Prime 400L
Integrated Solar		4 kWp
Additional Input Capacity	AC Inverter Coupled	21 kWp
	AC Load Coupled	30kWp
