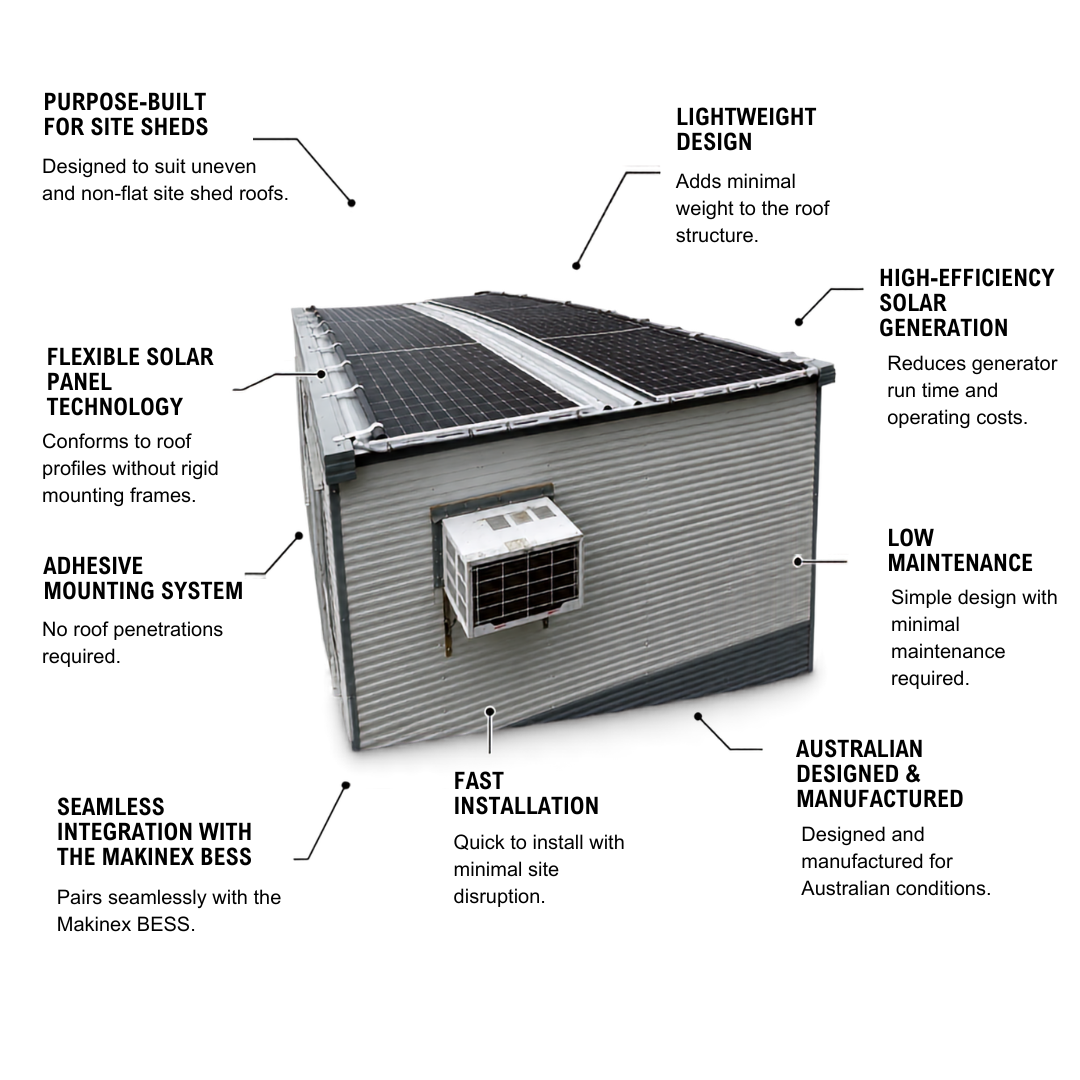

SPV3 Site Shed Solar

MODEL:

SPV3

Solar (PV):

6 x SUNMAN 430 W PANELS (2.58 kw total)

PV INVERTER INPUT SIDE

Max dc power

7.8 kw

Max dc input voltage

550 v

Start-up dc input voltage

80 v

Mppt operating range

70-500 v

Rated dc input voltage

360 v

Mppt full power voltage range

265-500 v

Max dc input current

13 + 13 a

Max. Short circuit current

19.5 + 19.5 a

Number of mppt/strings per mppt

2 / 1+1

PV INVERTER OUTPUT SIDE

Rated output power

6 kw

Max active output

6 kw

Rated ac voltage

L/n/pe 230v single phase

Ac voltage range

0.85un-1.1un

SURGE OUTPUT (10 s)

6.9 kw

Rated frequency

50 hz

Frequency range

45-55 hz

Rated ac output current

26.1 a

Max ac output current

26.1 a

Max ac output fault current

49.8 a

Max ac output overcurrent prot.

49.8 a

Inlet (bess10)

1 x 32A 230 VAC (3 Pin Round)

Max ac input power (bess10)

7.3 kw Max Input (230VAC 32A)

Dry weight

360 kg

Dimensions (deployed)

6000 x 3000 x 30 mm length x width x height

Telecommunication

Wi-Fi
